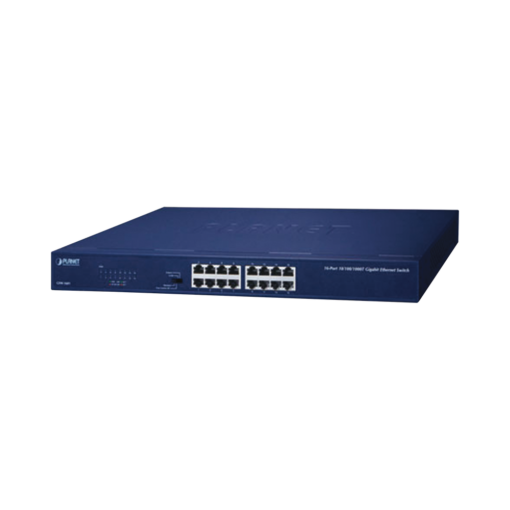

16-Port Gigabit Unmanaged Switch, supports 10/100/1000 Mbps speeds with Extended Mode for Distances up to 200m

Name: 16-Port Gigabit Unmanaged Switch, supports 10/100/1000 Mbps speeds with Extended Mode for Distances up to 200m
Brand: PLANET
SKU: GSW-1601
Availability: InStock

$108.99

Model: GSW-1601
Brand: PLANET

93 in stock

Track your shipment

Shipments via UPS track your order and receive it in excellent condition.

Protected data

All your data is encrypted via SSL and processed through Stripe or PayPal.

SKU: GSW-1601 Categories: GT60, NETWORKING, STRUCTURED CABLING Brand: PLANET

Plug & Play Autonegociación 10M/100M/1000M MARCO gigante MDI automático/MDI-X

VLAN Isolation Mode

VLAN operation mode features port-based VLAN function that can help prevent the connected clients’ multicast or broadcast storm from influencing each other.

Extend Mode

Extend operation mode, operates on a per-port basis at 10Mbps duplex operation but can transmit data over a distance of up to 200 meters overcoming the 100m limit on Ethernet UTP cable.

Hardware Specifications
Hardware Version	9
10/100/1000BASE-T MDI/MDIX Ports	16
Throughput (packet per second)	23,8Mpps
Switch fabric	32 Gbps
Weight	1,8 kg
Power Consumption/Dissipation	9,4 Watts/32 BTU
Power Requirements	100~240 V CA, 0,16 A, 50-60 Hz
Dimensions (W x D x H)	440 x 208 x 44 mm, 1U of height
Switch Processing Scheme	Store-and-Forward
Address Table	8K entries
Jumbo Packet Size	9K
Flow Control	Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex
Dip switch	Operation mode selection: Standard, Flow control off, VLAN, Extend
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3x (Full-Duplex Flow Control) IEEE 802.3az Energy Efficient Ethernet (EEE)
Operating	Operating Temperature: 0~50 degrees C Relative Humidity: 5% to 95% (non-condensing)
Storage temperature	Temperature: -10~70 degrees C Relative Humidity: 5% to 95% (non-condensing)
Package content	– 1 Switch GSW-1601 – 1 power supplu cable – 2 mounting for rack – 1 user manual
Warranty	3 Years
