EPON/GPON ONU with Wi-Fi 2.4G/5G 802.11 a/b/g/n/ac, 1 “TEL POTS” port, 2 Ethernet ports 10/100/1000. GPON Speed: Up to 2.488Gbps/1.244Gbps.

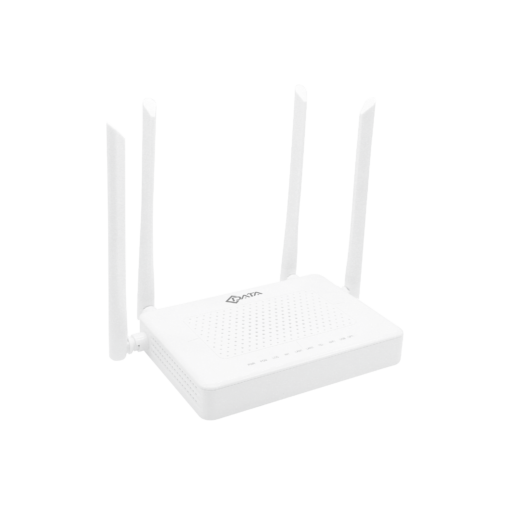

The FD602GW-DX devices are designed to satisfy the demand for FTTH and triple play services of fixed network operators, supporting EPON / GPON technologies. They are based on Chipset (Realtek) technology, which has a high cost / benefit ratio, and the technology of IEEE802.11b / g / n / ac WiFi, Layer 2/3 and high quality VoIP. Supports full management of devices through CDATA OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different services.

ONU EPON/GPON con Wi-Fi AC

“Wireless speed: up to 1.167Gbps“

• Dual band Wi-Fi..
• Dual Gigabit port.
• 1 PON SC/UPC port.
• 1 POTS port
• Supports EPON PX20 / GPON Class B +.
• 4 external antennas with 5 dBi gain.
• Supports SIP protocol.
• Includes CD power supply.
• 802.11b/g/n/ac standards.
• Distance 20 Km..
• Local management software..
• Remote management software..
• Management from android APP..

Main features:

• Dimensions: 178mm × 120mm × 30mm (length × width × height).
• Frequency range: 2.400-2.483 GHz and 5.150-5.825 GHz.
• Gain 5 dBi.
• Multiple SSID.
• OutPower: 2.4 GHz: 22 dBm / 5 GHz: 24 dBm.
• Security: WEP / WPA-PSK (TKIP) / WAP2-PSK (AES)
• Dual Giga Ethernet ports.
• Wavelength: TX: 1310 nm & RX: 1490 nm.
• Management: OAM / OMCI, Telnet, Web, TR069 and CDATA OLTs

Physical and Electrical Characteristics:

• Power supply: 12 Vdc / 1 A (Includes DC power supply.).
• 2 10/100/1000 Mbps RJ45 ports.
• 1 RJ11 ports.
• Supports codecs: G.711A / G.711U / G.723 / G.729.
• Supports: T.30 / T.38 / G.711 Fax mode and DTMF.
• Echo cancellation superior to ITU-T G.165 / G.168-2002.
• Maximum consumption: ≤10W.
• Weight: 3.20 Kg.
• Operating temperature: 0 ℃ ～ + 50 ℃.

Network Features:

• Dual 10/100 / 1000Mbps network port.
• 1 PON port (EPON/GPON).
• SC / UPC connector
• EPON PX20+.
• GPON Class B+.
• Receive sensitivity: ≤-28dBm.
• SIP 2.0 over UDP / TCP / TLS.
• IP address assignment: PPPoE client, DHCP client and Static IP.
• Supports VLANs.
