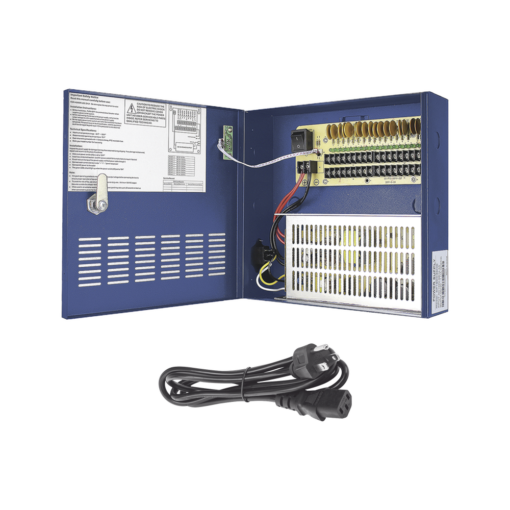

Professional Heavy Duty Power Supply @ 30 Amps. Features 18 channels with up to 2.5 Amps output per channel. Includes Overload Protection and Noise Filter per Channel. Approved by IEC/EN/UL/CSA, 60950 GB4943 standards

P18DC20HD is the only POWER SUPPLY in the industry with variable output voltage up to 15VDC ensures voltage sending in long distances.

Compatible with full line of analog and EPCOM TURBO HD cameras.

Power output filtered to prevent noise and protected against overvoltage.

HEAVY-DUTY.

• Easy installation
• Short circuit and over-voltage protection.
• Conventionally cooling system air.
• External LED indicators for each channel output.
• Built against electromagnetic interference filter EMI.

Protection:
• Overcurrent protection: 105 ~ 150% (rated output voltage)
• Overvoltage Protection: 1.5 times of the rated voltage
• Short circuit protection: short the output voltage, with automatic reset.

Physical and Electrical Specifications:

• Approved by: IEC / EN / UL / CSA, 60950 GB4943
• Input voltage: 100 o 240 Vac
• Output voltage: 11.5 ~ 15 VDC. (adjustable)
• Output Current: 30 A
• Board distribution: 1 for connection of 18 cameras.
• Dimensions: 10.43 x 10.03 x 3.14″
• Operating temperature: -14 ~ 122 °F
• Weight: 5.5 lb

*5 Years Warranty
